Nilearn Visuals

The Nilearn Visuals extension creates publication-ready visualizations of stimulation fields using the Nilearn neuroimaging library. It averages the chosen simulations in MNI space and draws the result as a multi-slice figure with atlas outlines and as a glass-brain figure, both saved as PDF files.

Key Features

  • Group Averaging: Average across subject/simulation pairs. TI and mTI simulations can be averaged together, and a single pair is a complete visualization
  • Multiple View Types: Sagittal, coronal and axial slices, and glass brain projections
  • Atlas Integration: Outline every region of a chosen atlas over the field for anatomical reference. The atlases ship with TI-Toolbox and work offline
  • Data-Driven Thresholding: The display range comes from the averaged field by default. You can also give cutoffs in V/m or as percentiles
  • High-Resolution Output: Publication-quality PDF files

User Interface

Turn the extension on in Settings ▸ Extensions ▸ Nilearn visuals (a reload applies the change), then open Extensions ▸ Nilearn visuals in the sidebar.

Subject-Simulation Selection

The Subjects table holds the pairs that go into the group average, one Subject and one Simulation per row:

  • Add pair: add a row, then pick its subject and one of that subject’s simulations
  • Clear all: reset the table to a single empty row

All rows run as one job. A row without a subject or without a simulation blocks the run.

Visualization Parameters

Output Configuration

  • Output ▸ Sub-directory name (required): the folder created inside derivatives/ti-toolbox/nilearn_visuals/ for this run’s files

Atlas and Region

  • Visualization parameters ▸ Atlas selection: the atlas whose regions are outlined on the slice figure
  • Visualization parameters ▸ Region selection: All regions is the only choice. Every region of the chosen atlas is outlined; picking specific regions is not available

Threshold Settings

  • Visualization parameters ▸ percentile checkbox (Give cutoffs as percentiles (0–100) of the field’s non-zero voxels instead of V/m): off, the cutoffs are in V/m; on, they are percentiles. Switching it clears both values, because a number typed in one unit means nothing in the other
  • Minimum cutoff: field values below it are hidden. Empty means the 95th percentile of the averaged field’s non-zero voxels
  • Maximum cutoff: the top of the colour bar. Empty means the 99.9th percentile of the averaged field’s non-zero voxels

Both cutoffs start empty, and each can be left empty on its own. Click Generate images to queue the job.

Workflow Example

Basic Group Visualization

  1. Check the inputs: every simulation is read as its MNI-space NIfTI, written by the job when the simulation did not (see File Format Requirements)
  2. Open tool: enable Nilearn visuals in Settings ▸ Extensions, then select it under Extensions in the sidebar
  3. Configure Subjects: use Add pair and choose a subject and a simulation for each row
  4. Set Parameters:
    • Sub-directory name: hippocampus_stimulation
    • Atlas selection: Harvard-Oxford (subcortical)
    • Cutoffs: leave both empty for the data-driven range
  5. Generate Images: click Generate images to process

Output Structure

Results are saved to derivatives/ti-toolbox/nilearn_visuals/{sub-directory}/, where N is the number of pairs:

hippocampus_stimulation/
├── group_averaged_5_subjects.nii.gz          # Averaged NIfTI file
├── group_averaged_5_subjects_parameters.txt  # Pairs, cutoff range, atlas key
├── group_averaged_5_subjects_multiple_views.pdf    # Multi-slice view with atlas outlines
└── group_averaged_5_subjects_glass_brain.pdf       # Glass brain view

Example Results

Visualization Types

The extension generates two high-resolution PDFs:

  • Multi-slice view (_multiple_views.pdf): 3 rows by 7 slices, with sagittal slices at x = −60 to 60, coronal slices at y = −80 to 70 and axial slices at z = −30 to 70. The field uses the “hot” colour map and the atlas outlines are drawn in cool colours, so they are not mistaken for field
  • Glass brain (_glass_brain.pdf): four views of the field

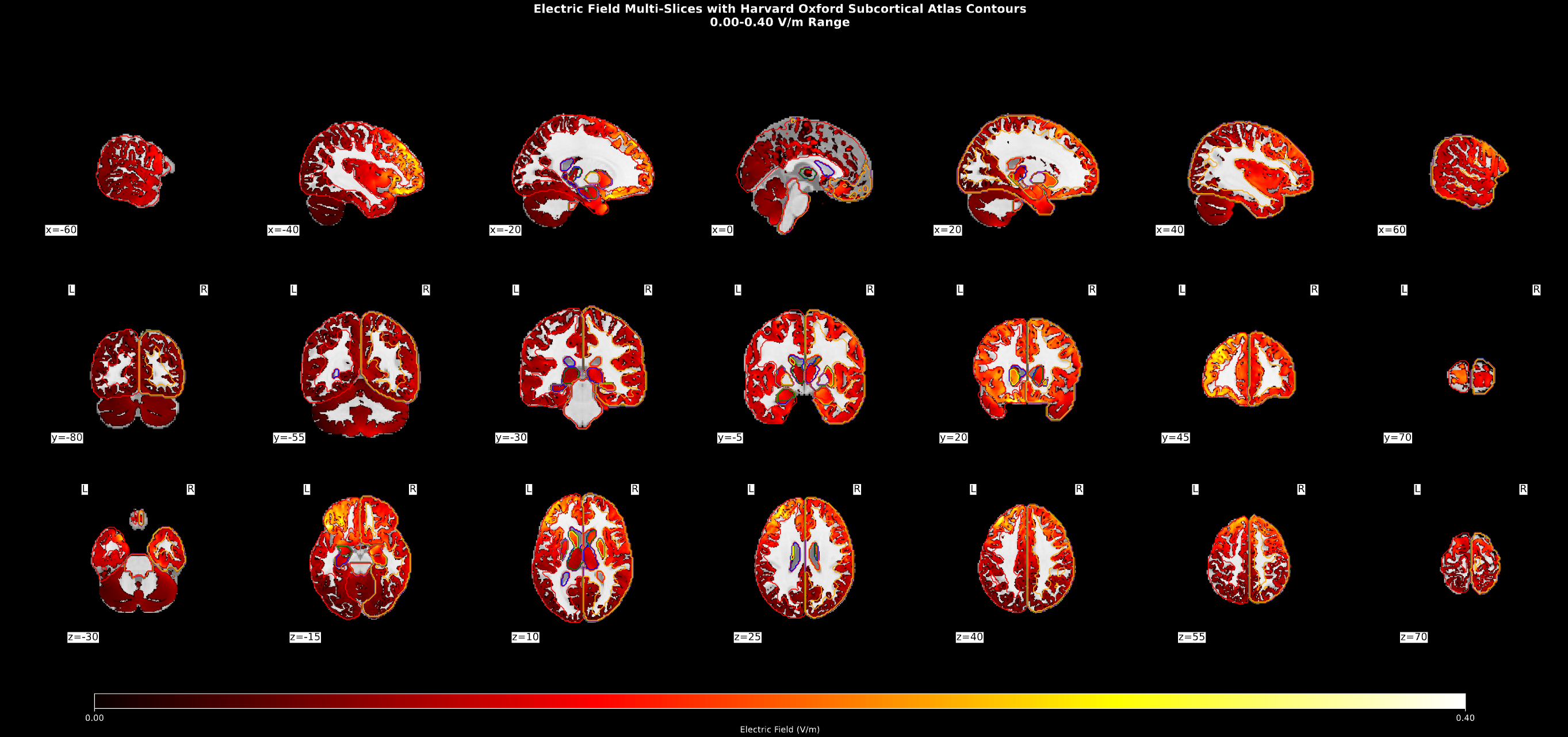

Multi-slice view of a simulated field with Harvard-Oxford subcortical atlas outlines Multi-slice view for an example subject with the default cutoffs and atlas. Only the field above the 95th percentile is shown, so the display range is data-driven (here 0.07–0.12 V/m), and the outlines are the Harvard-Oxford subcortical regions

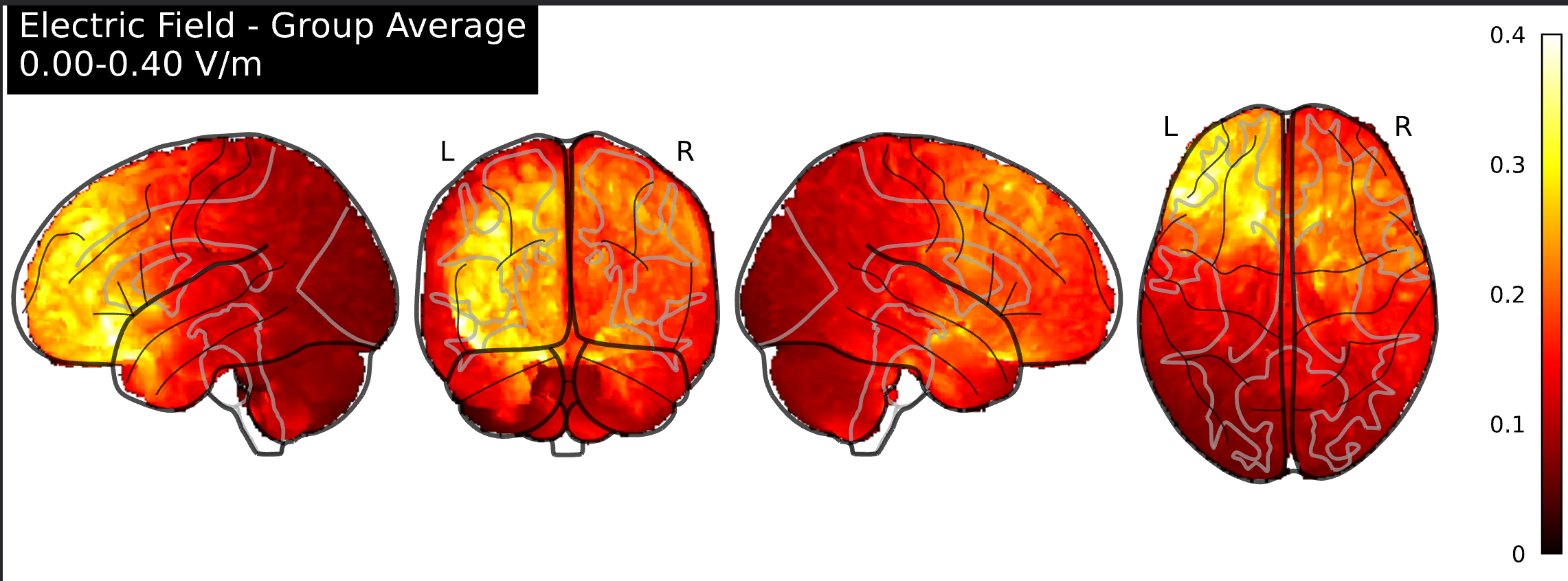

Glass-brain view of a simulated field in four projections: left, coronal, right and axial Glass-brain view, the page of the glass-brain PDF, for the same example simulation (L_Insula) as the multi-slice view: its grey-matter TI_max field in MNI space with the default cutoffs. Each view projects the field through the whole brain; only values above the 95th percentile (0.0718 V/m) are drawn, and the colour bar tops out at the 99.9th percentile (0.12 V/m). The grey part of the colour bar is the hidden range below the minimum cutoff. The glass brain has no atlas outlines; its lines are Nilearn's brain schematic

File Format Requirements

  • MNI-space NIfTIs are written when needed: every simulation is read as its MNI-space field NIfTI. A simulation writes it when Simulator ▸ Job settings ▸ Output files ▸ Also in MNI space is ticked; otherwise the job writes it from the field mesh the first time, says so in its output and keeps it (Fields computed on demand). A simulation that cannot provide it is refused before the job starts, naming what is missing
  • TI runs read TI/niftis/grey_{simulation_name}_TI_MNI_MNI_TI_max.nii.gz from the simulation folder
  • mTI runs, recognised by an mTI/mesh/ folder, read mTI/niftis/grey_{simulation_name}_mTI_MNI_MNI_mTI_max.nii.gz
  • Mixing: TI and mTI runs can be averaged together
  • Grid: all pairs must be on the same voxel grid; otherwise the job names the subject that differs
  • Data Type: Floating-point values representing field intensity in V/m
